HACK

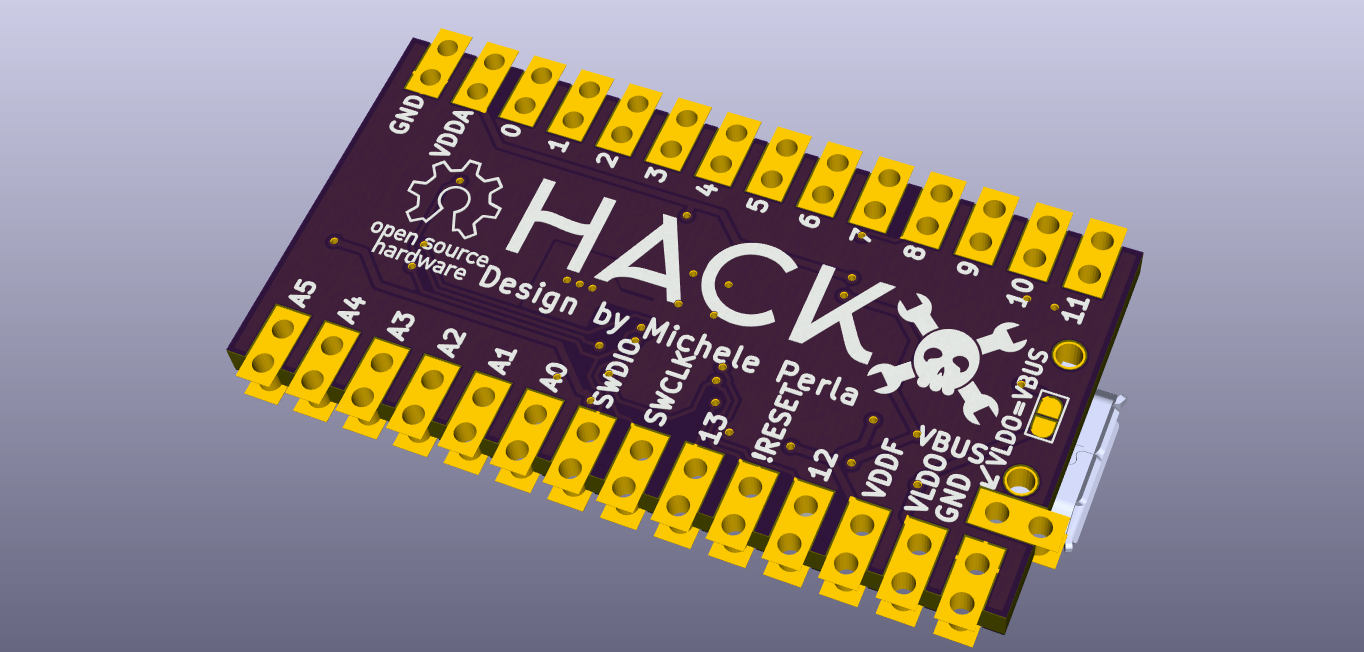

A Cortex-M0+ development kit with an Atmel SAM R21, a USB device/host port, a regulator, some passives, a programming header, and breakout headers.

Copyright © Michele Perla 2015

This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2.
(http://ohwr.org/cernohl). This documentation is distributed
WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF
MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A
PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable
conditions

ReferencesQtyDescriptionManufacturerMPNDigikeyMouserRSNewarkFarnell
C3,C42UWX1C100MCL2GB493-2099-1-ND647UWX1C100MCL2
D11LTST-C190KRKT160-1436-1-ND859LTSTC190KRKT
U21STF202-22T1GSTF202-22T1GOSCT-ND863STF20222T1G
C51CC0603KRX7R9BB472311-1083-1-ND603C0603KRX7R9BB472
L21ELL-VFG100MCPCD2293CT-ND667ELLVFG100MC
U31ATSAMD21E18A-MUATSAMD21E18A-MU-ND556ATSAMD21E18AMU
L11BLM18EG221SN1D490-3992-1-ND81BLM18EG221SN1D
R31RC0603FR-0710KL311-10.0KHRCT-ND603RC0603FR0710KL
S11PTS810 SJM 250 SMTR LFSCKN10502CT-ND611PTS810SJM250SMTR
P1110118193-0001LF609-4616-1-ND649101181930001LF
C1,C22CC0603MRX5R5BB225311-1814-1-ND603CC603MRX5R5BB225
U11MIC5528-3.3YMT-TR576-4766-1-ND998MIC55283.3YMTTR
C8-C114CC0603KRX7R9BB104311-1344-1-ND603CC603KRX7R9BB104
R11RC0603FR-071ML311-1.00MHRCT-ND603RC0603FR071ML
P2,P32PREC014SACN-RCS1032EC-14-ND
R2,R42RC0603FR-07330RL311-330HRCT-ND603RC0603FR07330RL
X11ABS07-32.768KHZ-7-T535-9543-1-ND815ABS0732.768K7T
C6,C72CC0603JRNPO9BN100311-1058-1-ND603C0603JRNPO9BN100
